Chemical Linkages

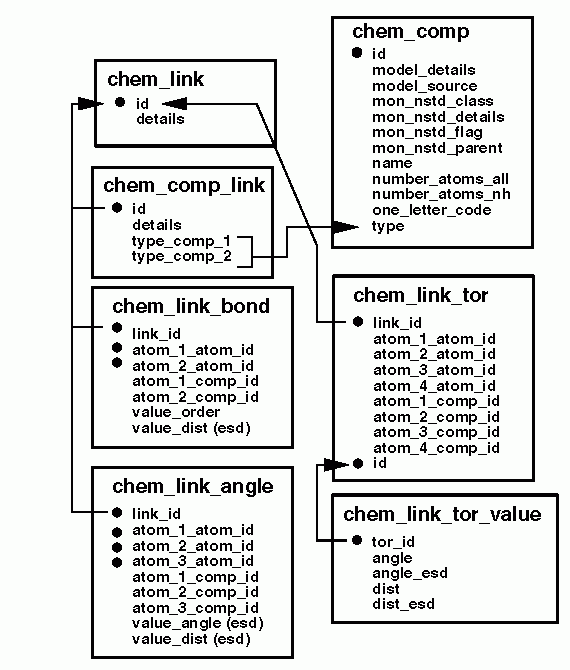

The geometrical specifications of linkages between chemical components or entities are described in the CHEM_LINK group of categories. Chemical components may be linked together according to component type. Component type is an enumerated list of common polymer linking types defined in category CHEM_COMP. By defining linking according to type rather than component identifier permits a single specification of generic polymer linkages (i.e. L-peptide linking) between a class of monomer components.

Linkages which span entities are described in the ENTITY_LINK category. The geometry of these covalent linkages is also specified in the CHEM_LINK categories.
